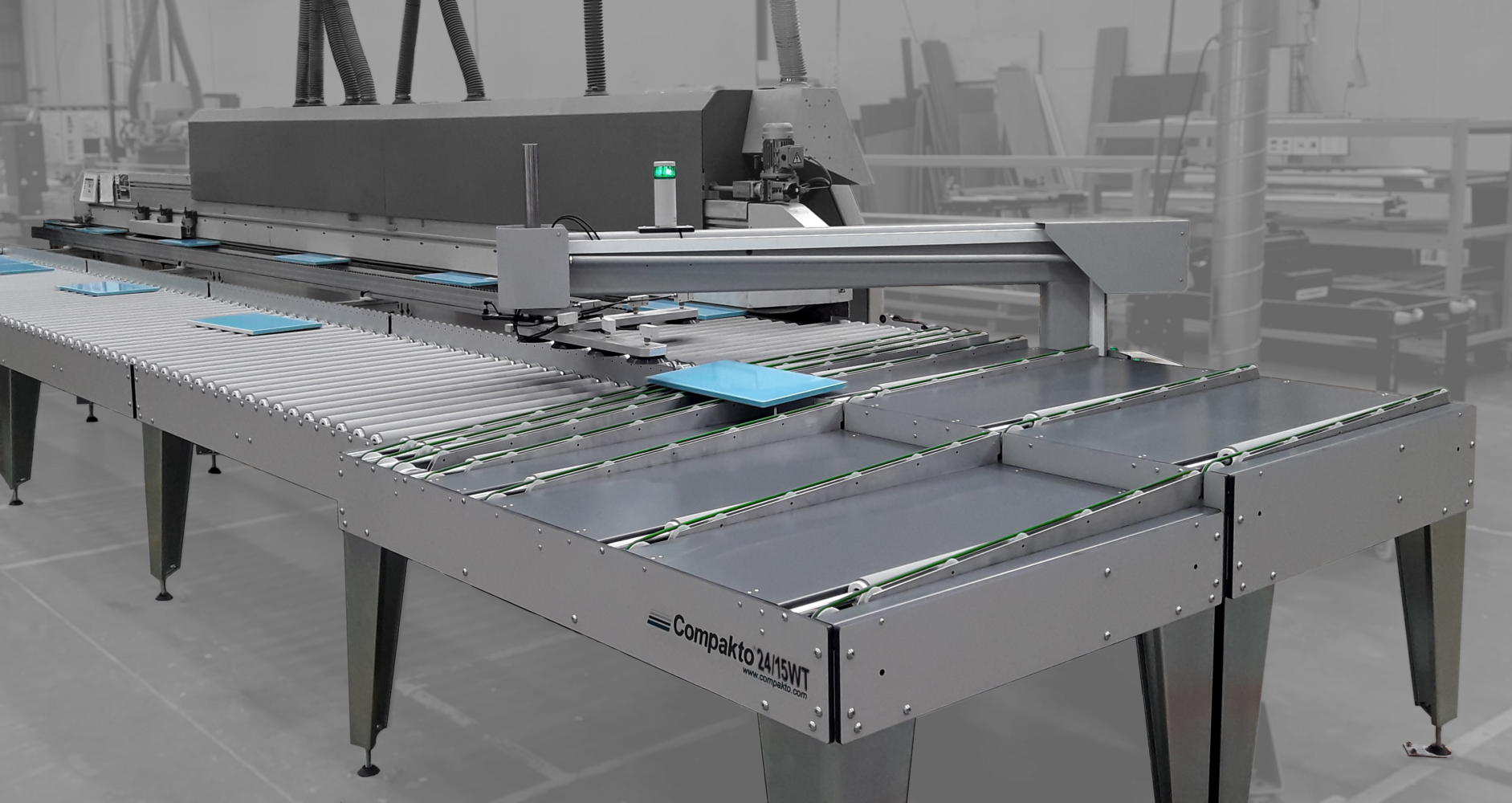

Compakto 24/15 WT Panel & Workpiece Return for edgebanders

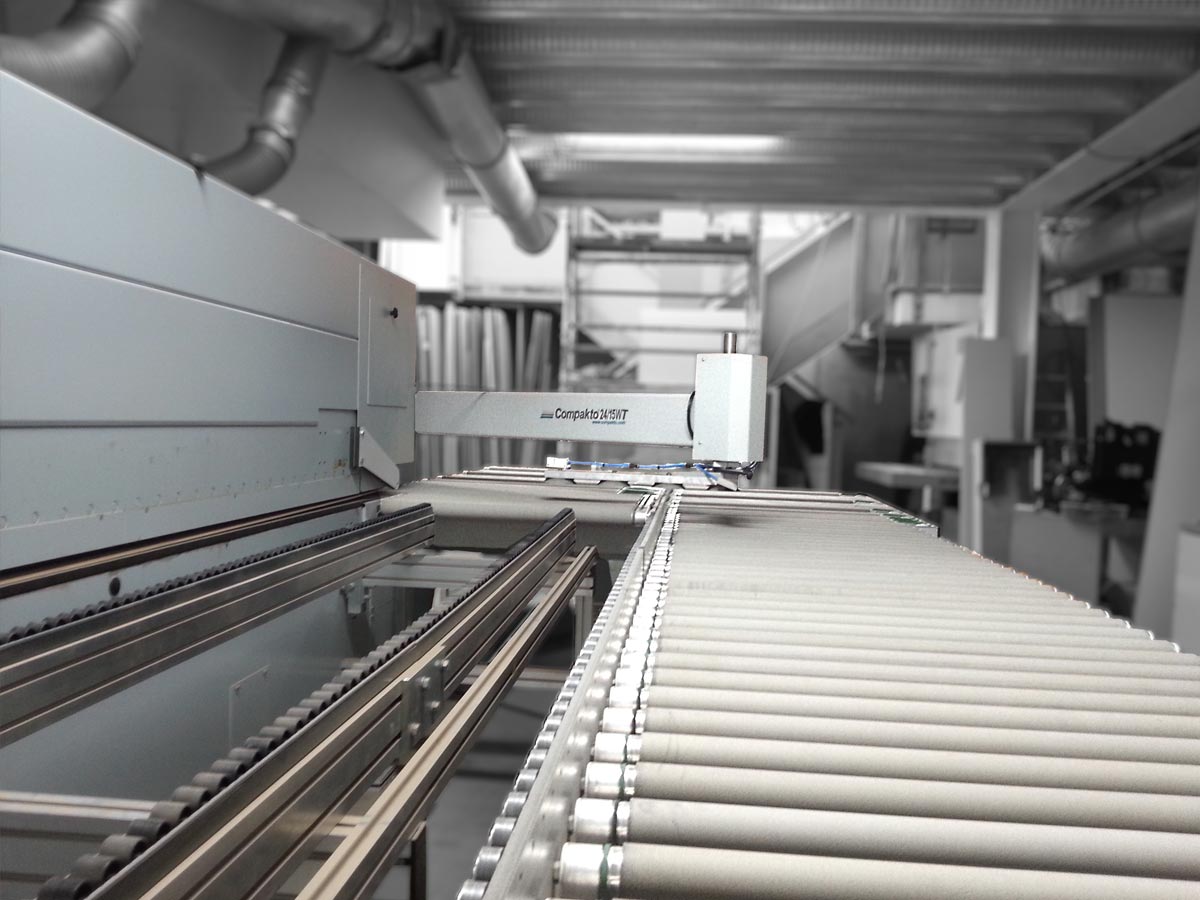

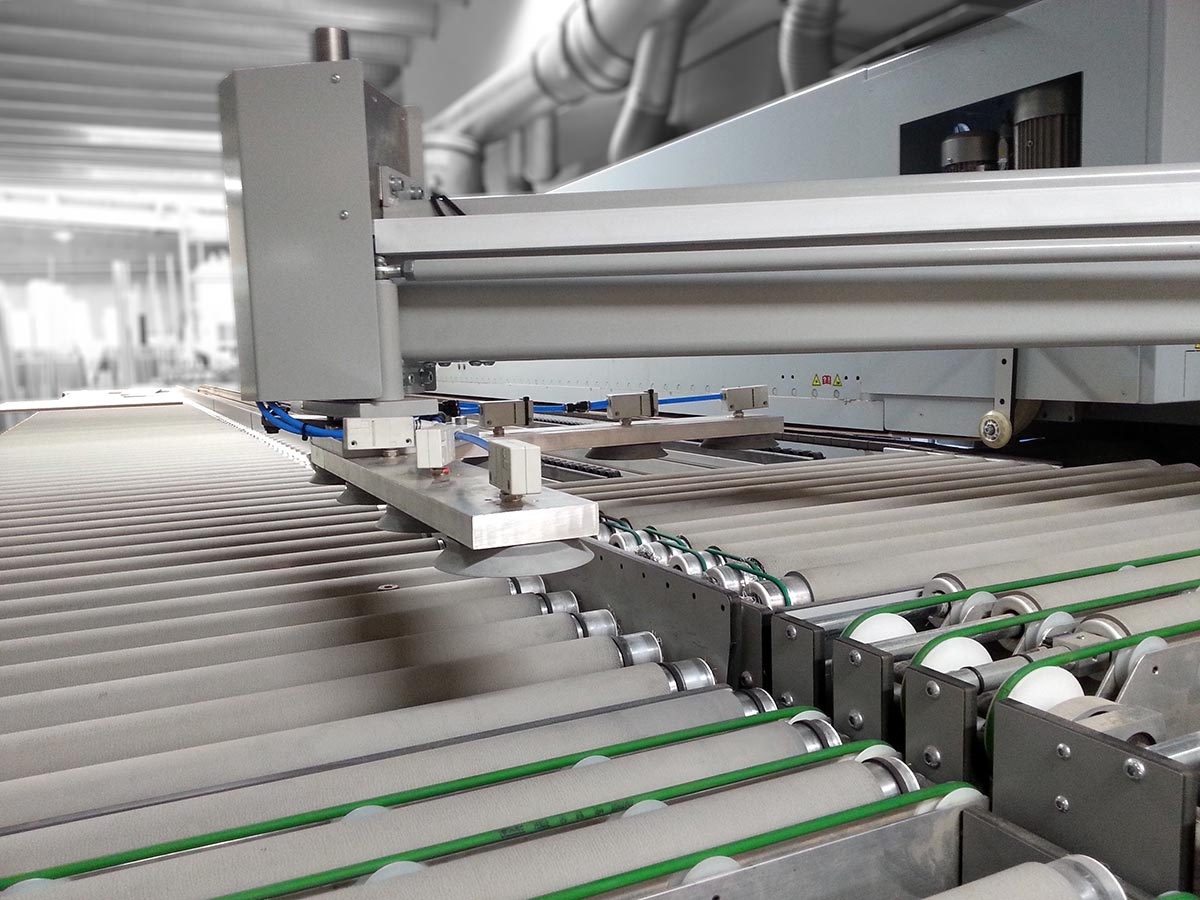

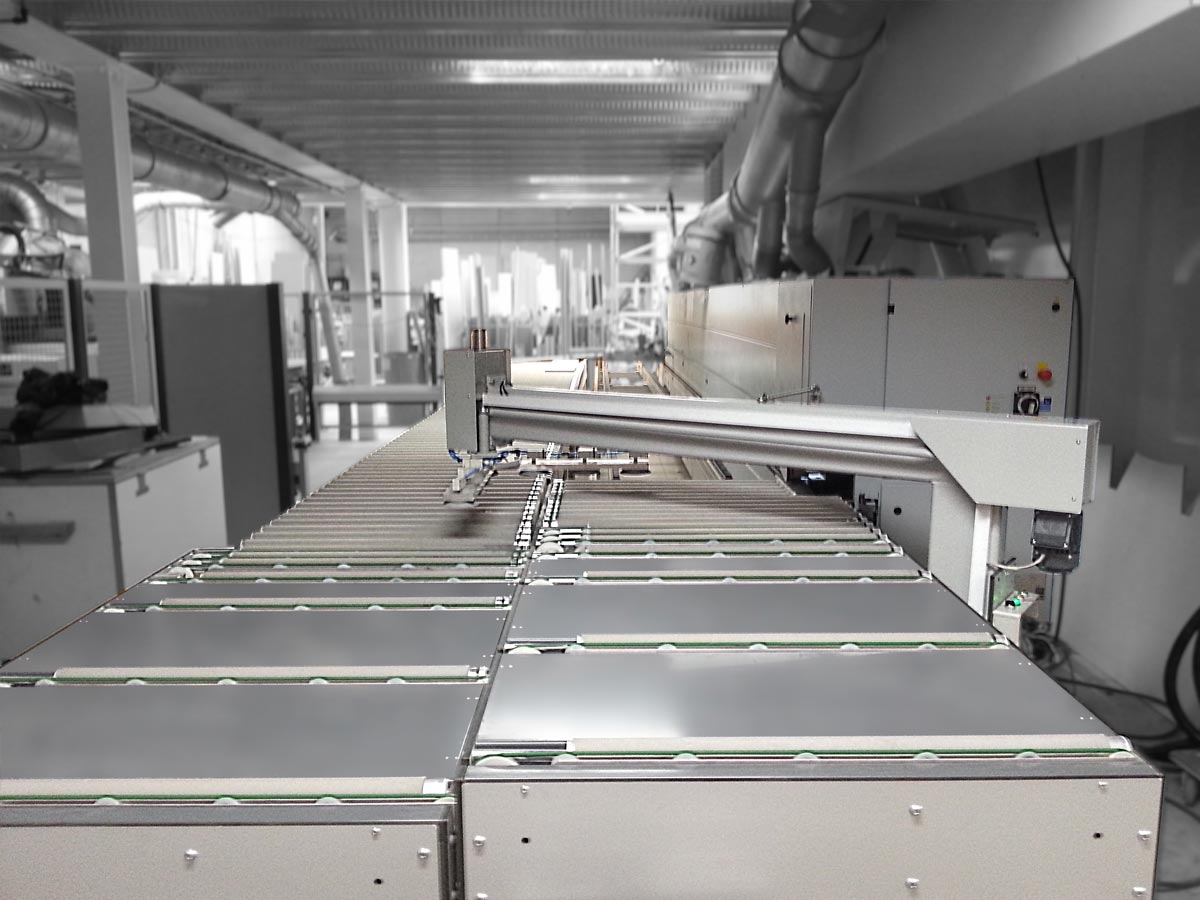

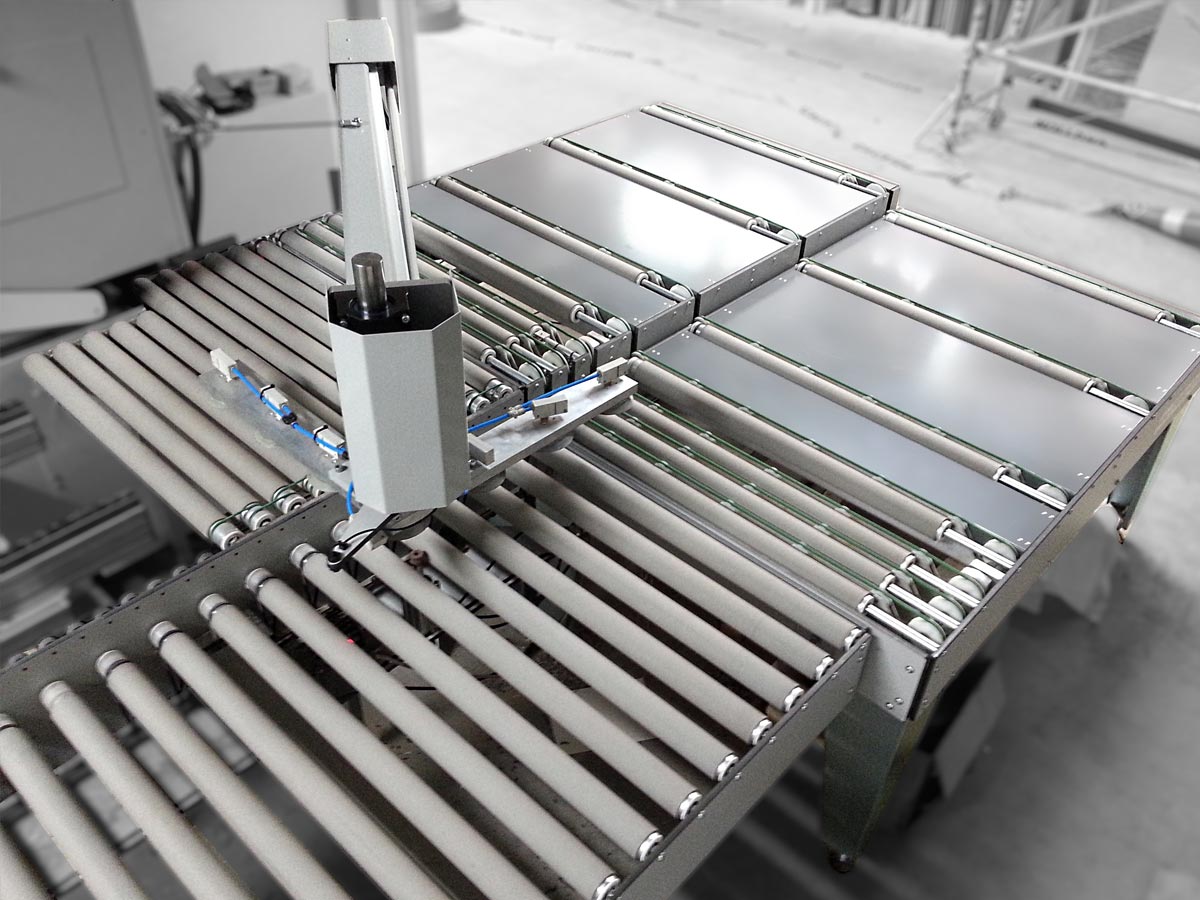

All the features of the 24/15 F with an additional overarm wide panel turner.

Your solution for wide panels.

Automatic turning of panels with width between 1500mm and 2400mm.

(minimum turnable length: 250mm)

Watch You tube video

Compakto 24-12        Compakto 24-12F      Compakto 24-15F

Features & Specifications

Max. returnable panel length: 2400mm (94.5")

Min. returnable panel length: 100mm (4")

Max. returnable panel width: 2400mm (94.5")

Min. returnable panel width: 60mm (2")

Max. edge bander track speed: 25m/min (82'/min)

Mini board turner – Reduces the minimum board length to 100mm by turning small panels 45°.

Reduced pitch at the end of the conveyors – The roller spacing of 65mm at the end of conveyor stop these small panels from falling through the gaps when they settle against the end roller.

Support rail – For extra support of wide panels a fixed rail of rollers is fitted along-side the conveyors.

Compakto 24/15WT panel returns automate the return of the workpiece to the operator, they have been installed on Biesse, Brandt, Hebrock, HOLZ-HER, Homag, IMA, OTT, SCM and Stefani edgebander brands.
