Compakto 24/15 F Panel & Workpiece Return for edgebanders
For high-production edgebanders.
For track speeds up to 25m/min.
Returns larger panels than both the 24/12 models.
Variable roller speed.
Features & Specifications
Max. returnable panel length: 2400mm (94.5")
Min. returnable panel length: 100mm (4")
Max. returnable panel width: 1500mm (59")
Min. returnable panel width: 60mm (2")
Max. edge bander track speed: 25m/min (82'/min)
Mini board turner – Reduces the minimum board length to 100mm by turning small panels 45°
Reduced pitch at the end of the conveyors – The roller spacing of 65mm at the end of conveyor stop these small panels from falling through the gaps when they settle against the end roller.
Support rail -For extra support of wide panels a fixed rail of rollers is fitted along-side the conveyors.

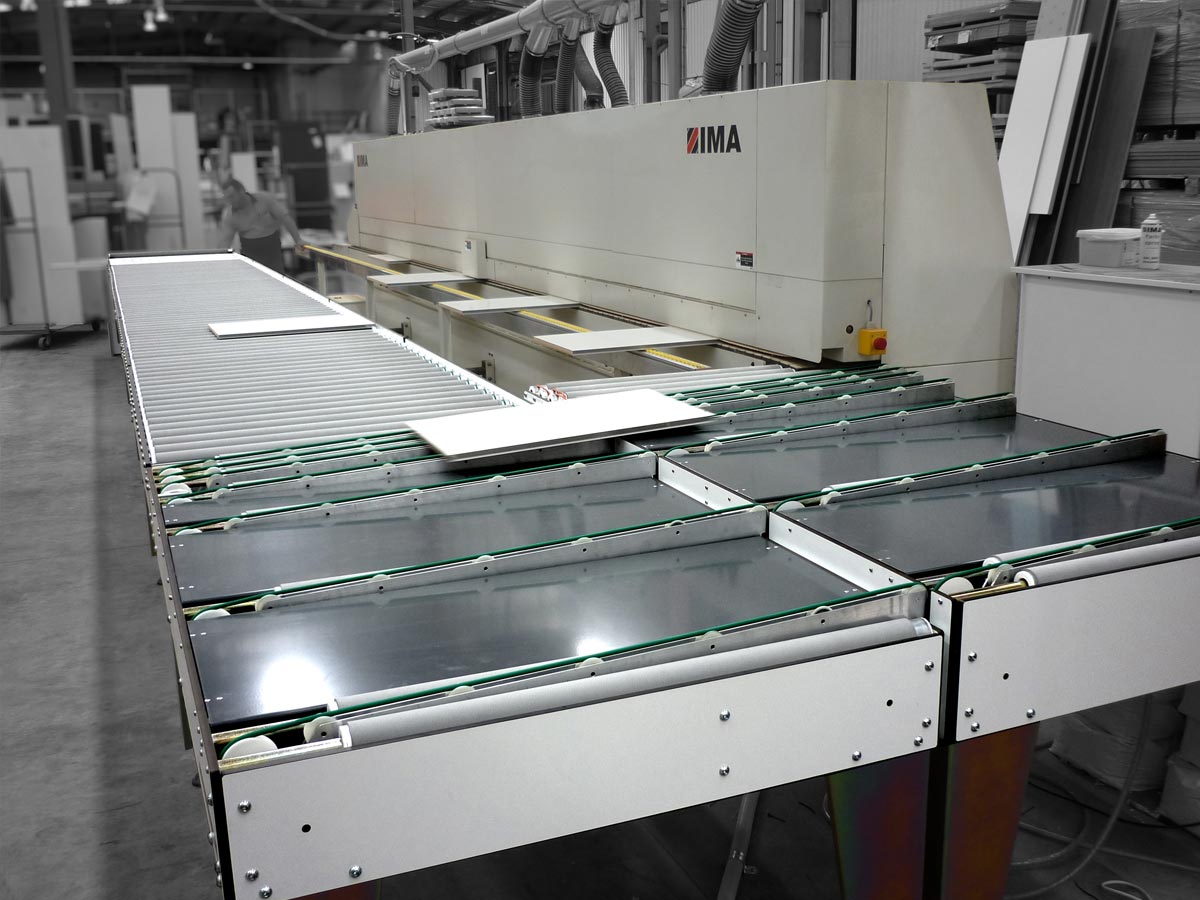

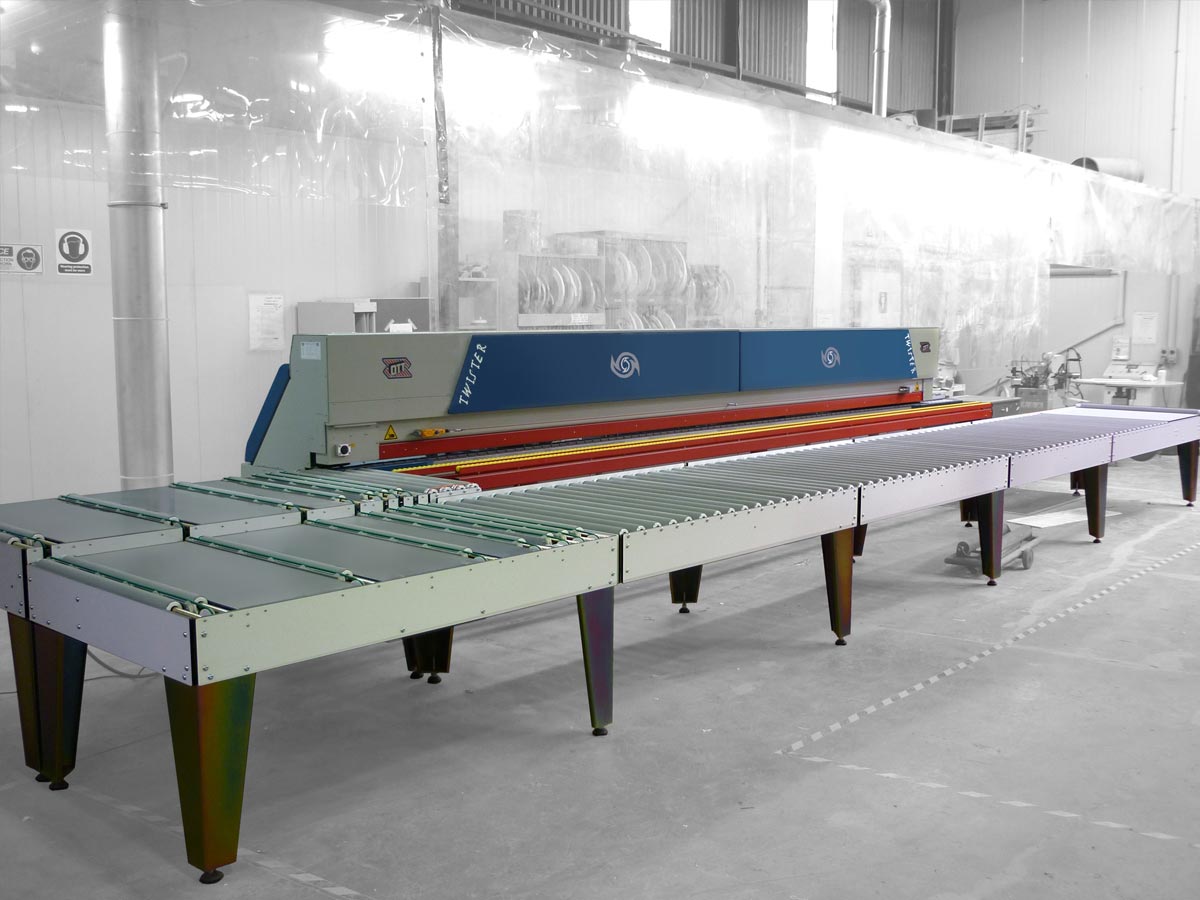

Compakto 24/15F panel returns automate the return of the workpiece to the operator, they have been installed on Biesse, Brandt, Fravol, Hebrock, HOLZ-HER, Homag, KDT, OTT, SCM and Stefani edgebander brands.Watch Video
