Compakto 24/12 F Panel & Workpiece Return for edgebanders
For track speeds up to 20m/min.
With small board turner and flow rails for extra support of wide panels.
Variable roller speed.
Features & Specifications
Max. returnable panel length: 2400mm (94.5")
Min. returnable panel length: 100mm (4")
Max. returnable panel width: 1200mm (47")
Min. returnable panel width: 60mm (2")
Max. edge bander track speed: 20m/min (65'/min)
Mini board turner – Reduces the minimum board length to 100mm by turning small panels 45°
Reduced pitch at the end of the conveyors – The roller spacing of 65mm at the end of conveyor stop these small panels from falling through the gaps when they settle against the end roller
Support rail – For extra support of wide panels a fixed rail of rollers is fitted along-side the conveyors

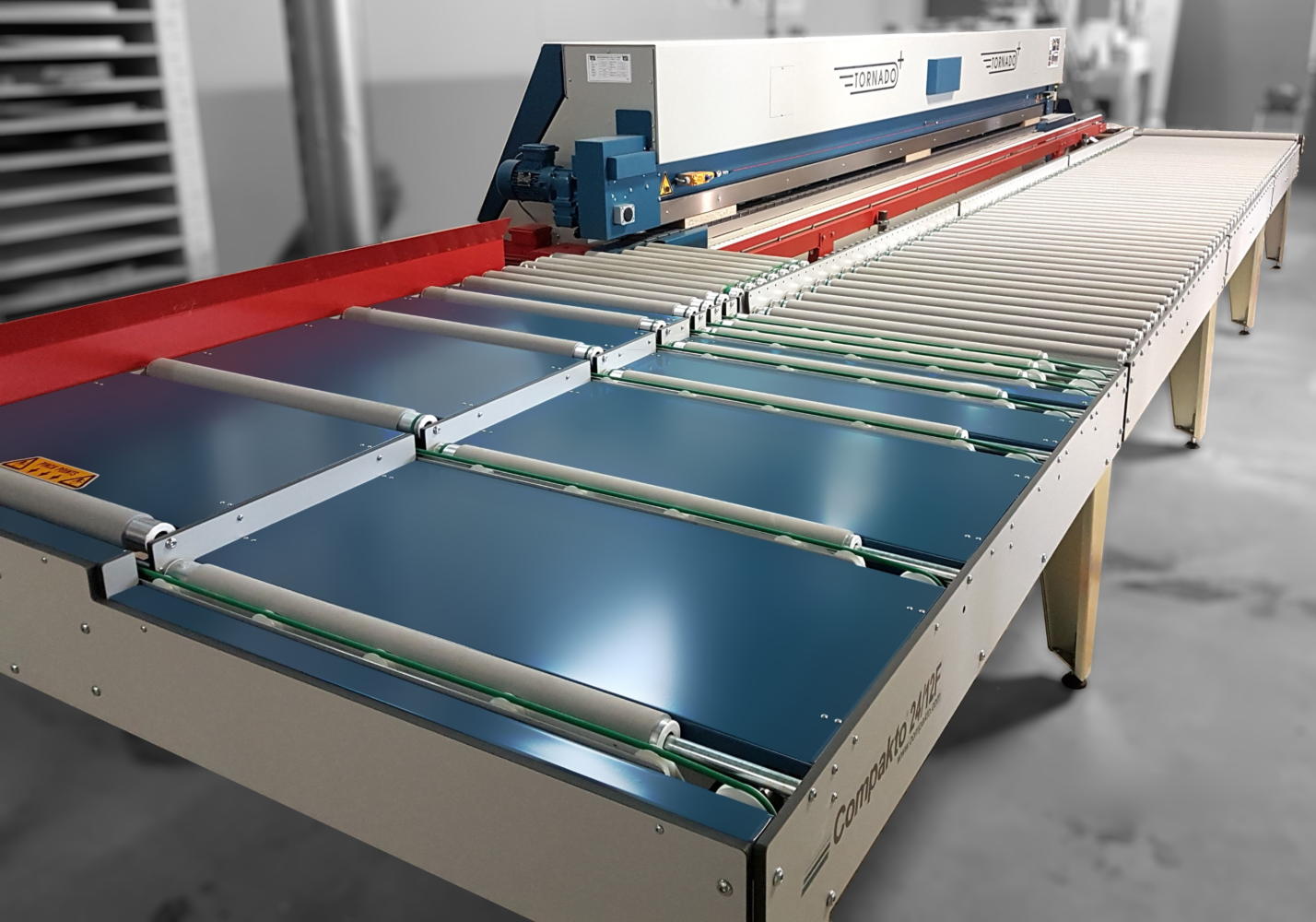

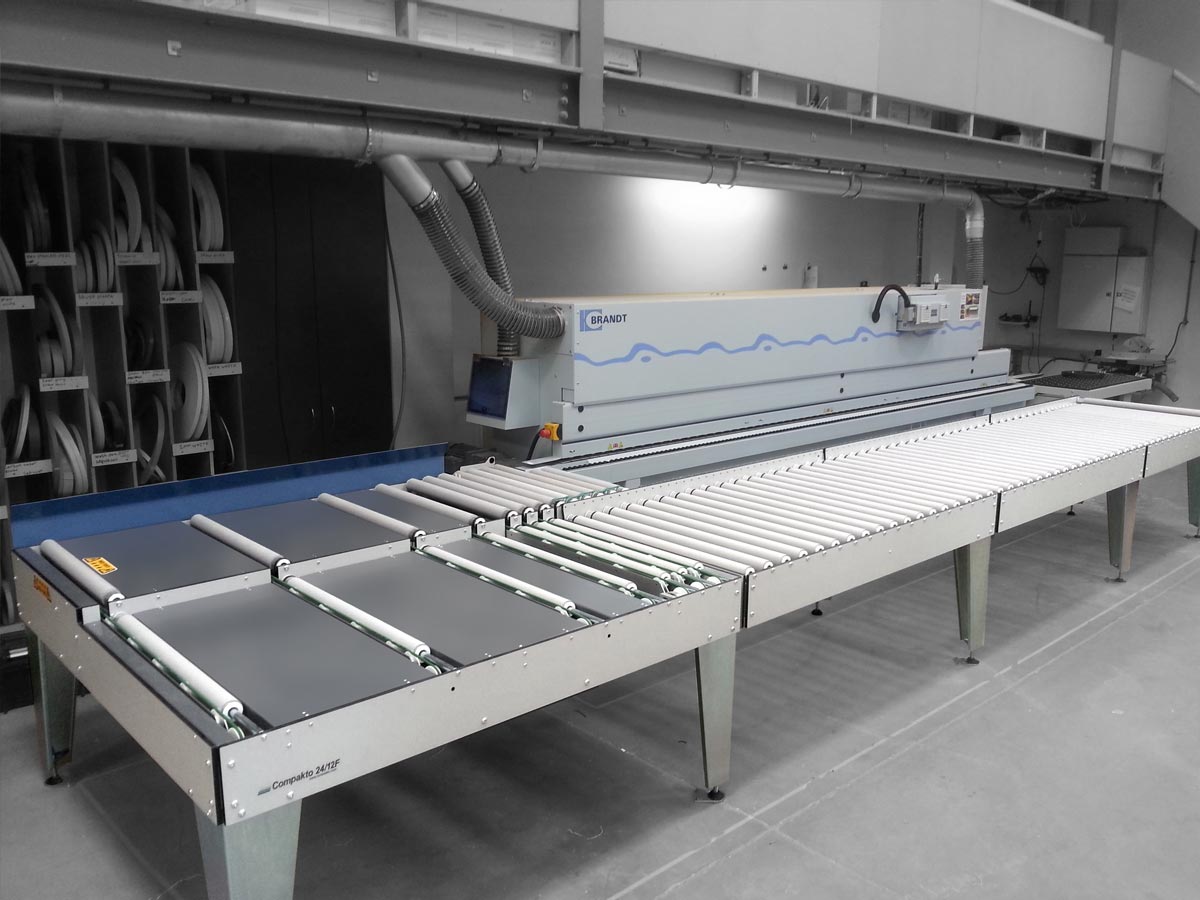

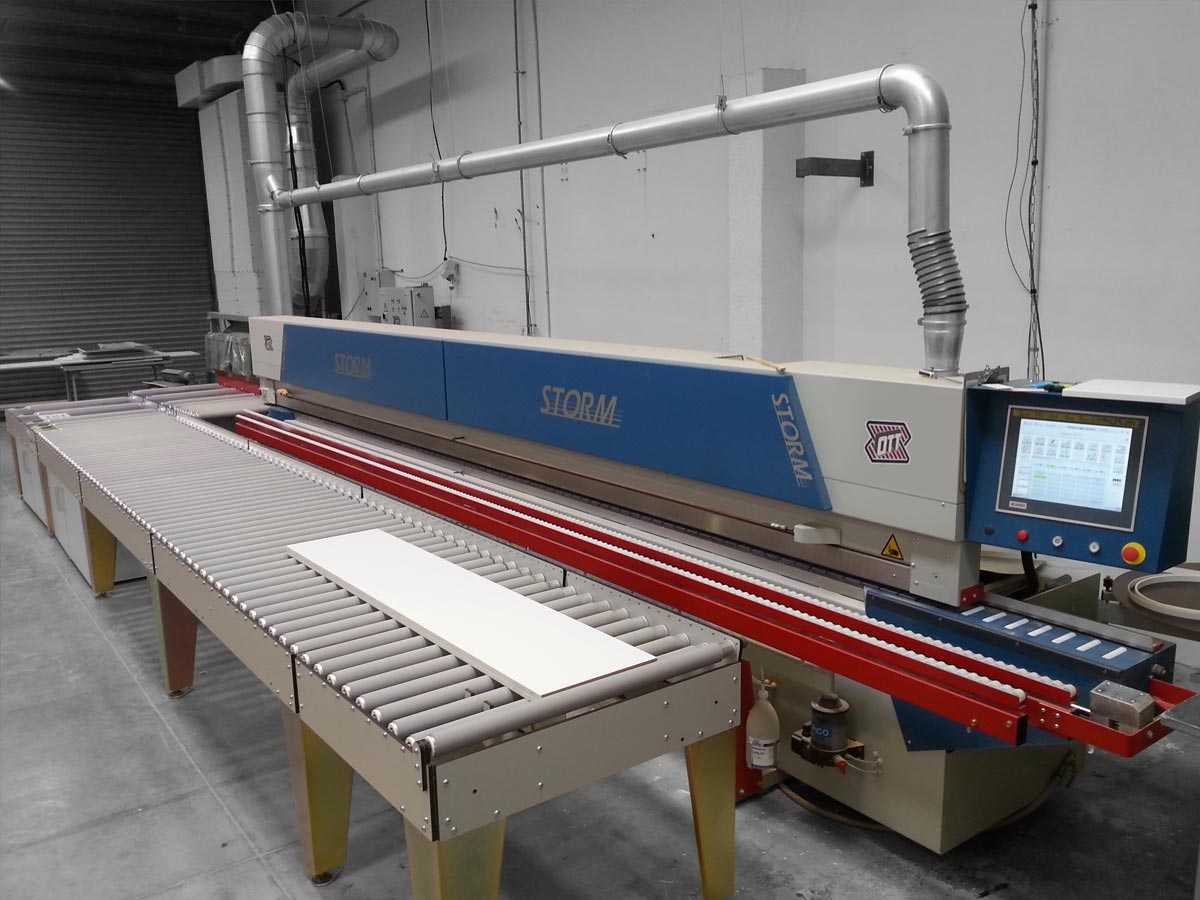

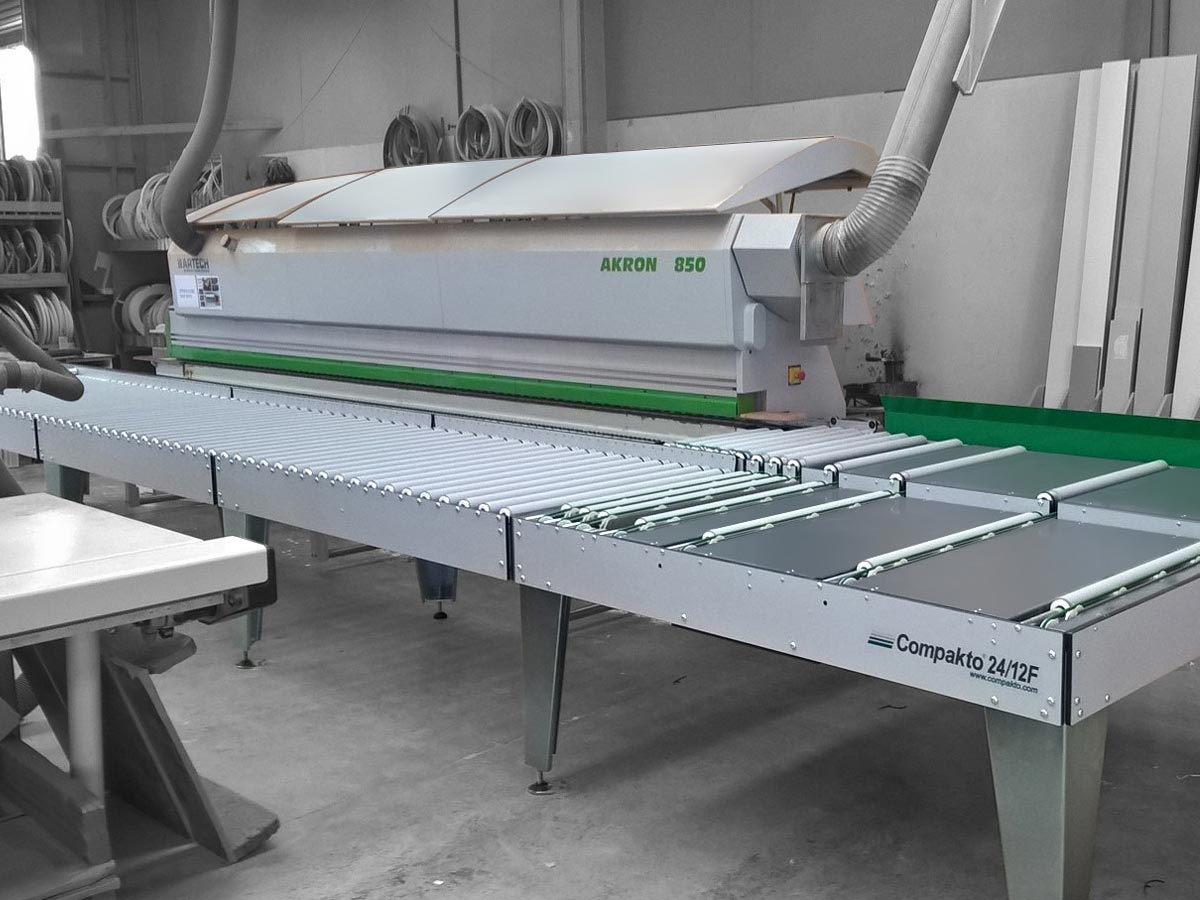

Compakto 24/12F panel returns automate the return of the workpiece to the operator, they have been installed on Biesse, Brandt, Fravol, Hebrock, HOLZ-HER, Homag, KDT, OTT, SCM and Stefani edgebander brands.
